Maipu MP 1800-35E (V2)

MP1800-35E router developed by Maipu is one new-generation enterprise-class access router, applicable to finance/government/branches of large enterprise, and headquarters and branches of middle/small enterprise. It integrates various modern network technologies, such as routing, switching, QoS, security, 3G/4G to provide the flexible access modes and secure and high-efficiency service experience for the users.

Product Features

• Flexible uplink link

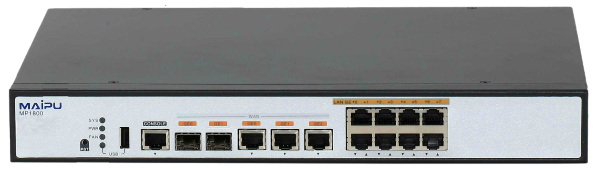

  MP1800-35E integrates three Gigabit WAN ports (two 1000M Combo + one 1000M Base-T fixed interfaces). 1000M Combo interface supports 1000M/100M fiber. In the MSTP link optical access scenario, do not need to configure media converter; meanwhile, uplink supports various mainstream WAN access link technologies, such as 3G/4G, E1/CE1, and serial line.
• Extended slots are flexible and no limitation
  MP1800-35E has no using limitation for the extended slots. The whole device supports four extended slots and they has no high/low-speed difference and no limitation for the cards; meanwhile, the two extended slots of MP1800-35E support the horizontal or vertical slot merging to provide higher-density service interfaces in the future.
• High performance
  MP1800-35E series router reaches more than 500kpps forwarding performance and the configured ACL, QoS, have small influence for the forwarding performance.
• High port density
  MP1800-35E series router supports up to 8*1000M fixed switch LAN ports, providing the powerful terminal access capability and meeting the requirement of the user for integrating the routing and switch to construct the access network.
• Rich software features
  MP1800-35E provides rich software features; supports various application technologies, such as VPN, MPLS, multicast, ACL, MAC address binding, access control, bandwidth limitation, MSTP, and NAT; supports RSVP resource reserving protocol and CAR; provides hierarchical QoS function to ensure the high priority of the key services; support the queue management policies, such as FIFO, PQ, CQ, FQ, CBWFQ, and LLQ.
• 3G/4G Wireless link technology
  MP1800-35E can flexibly select the inbuilt 3G/4G module and outer USB interface, according to the customer requirement, supports three 3G standards, that is, TD-SCDMA, CDMA2000, and WCDMA, supports two 4G standards, that is, TD-LTE and FDD-LTE; meanwhile, cooperates with IPSec VPN to provide the secure and flexible wireless WAN access for the customer.
• Convenient service deployment
  MP1800-35E supports deploying by U-disk. When the devices need to be deployed, you just need to insert the private U-disk to the device so that MP1800-35E can automatically load the corresponding IOS software and configuration, that is, plug and play.
